S.S. G414 EXTRA HEAVY DUTY WIRE ROPE THIMBLE U. S TYPE AISI:304 or 316 Admin Edit

23301S 23302S 23303S 23305S 23307S 23308S 23309S 23310S


Product Description

ITEM NO
Pope DIA.

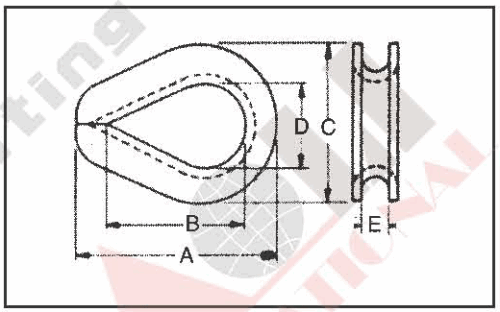

Dimensions (in.)
(IN.)
A
B
C
D
E
23301S
1/4
2.19
1.63
1.50
.88
.28
23302S
5/16
2.50
1.88
1.81
1.06
.34
23303S
3/8
2.88
2.13
2.13
1.13
.41
23305S
1/2
3.63
2.75
2.75
1.50
.53
23307S
5/8
4.25
3.25
3.13
1.75
.66
23308S
3/4
5.00
3.75
3.81
2.00
.78
23309S
7/8
5.50
4.25
4.25
2.25
.94
23310S
1
6.13
4.50
4.94
2.50
1.06

Category: Stainless Steel Rigging
