LEVER-RACK MECHANICAL JACK Admin Edit

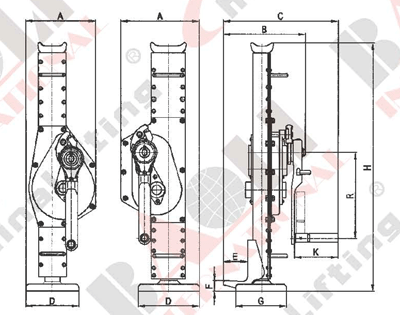

| . Using Lever-Handle, the operation may he shaken along the whole circumference, and also may he swung in any angle ( the min. angle is about 25 ) at the any position of circumference. either it may he operated in a narrow empty space or he operated by choosing the position saving efforts mostly. . It applies the load self braking device with double taper and pawls, ensuring the safe and reliable of braking performance and small of the anti-impulsive force. . The working position of bottom claw is the lowest, expanding the use range of the product. | ||||||||
| Conformes to DIN7355 and ASME B30.1-2004 | ||||||||
| Item No. | 03165 | 03166 | 03167 | 03168 | 03169 | 03170 | ||
| Rated | capacity | t | 1.5 | 3 | 5 | 10 | 16 | 20 |
| Test | load | kN | 18.4 | 36.8 | 61.3 | 122.5 | 196 | 245 |
| The hand power | ot full load | N | 150 | 280 | 280 | 560 | 640 | 640 |
| Distance | (mm) | 350 | 350 | 300 | 300 | 300 | 300 | |
| The lowest lilting height | The upper claw | (mm) | 725 | 725 | 725 | 800 | 800 | 860 |
| The bottom claw | 20 | 25 | 25 | 30 | 40 | 40 | ||
| A | 187.5 | 204.5 | 230 | 284 | 316.5 | 316.5 | ||
| B | 205 | 220 | 241 | 308 | 345 | 360 | ||
| Dimensions | C | 272.5 | 317 | 337 | 513 | 540 | 555 | |
| (mm) | D | 155 | 155 | 180 | 200 | 230 | 230 | |
| E | 60 | 65 | 70 | 85 | 85 | 85 | ||
| G | 130 | 130 | 150 | 170 | 195 | 195 | ||
| K | 113 | 127 | 127 | 247.5 | 250 | 250 | ||
| R | 225 | 250 | 250 | 300 | 300 | 380 | ||
| Net weight | kg | 17 | 22 | 29.5 | 50 | 69 | 80 | |
