LINCH PINS WITH ROUND SPRING RING Admin Edit
| Material: Mild steel Finish: Electro-galvanized | |||||

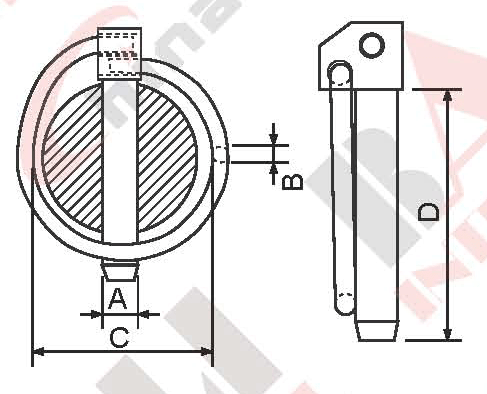

ITEM NO | diameter | diameter | width | length | weight |
pin | spring ring | inside spring ring | pin | kg/100PCS | |
a | b | c | d | ||
mm | mm | mm | mm | kg | |
27551 | 4.5 | 3.4 | 34 | 42 | 2 |
27552 | 6 | 3.4 | 41 | 42 | 2.8 |
27553 | 7 | 3.4 | 41 | 42 | 3 |
27554 | 8 | 3.4 | 41 | 42 | 3.5 |
27555 | 9 | 3.4 | 41 | 42 | 3.8 |
27556 | 10 | 3.4 | 41 | 42 | 4.4 |
27557 | 11 | 3.4 | 41 | 42 | 4.6 |
