Product Description

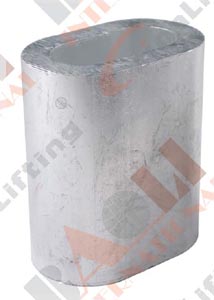

PRESS CLIPS DIN EN13411-3 17009 17010 17011 17012 17013 17014 17015 17016 17017 17018 17019 17020 17021 17022 17023/4/5







Form A:  Cylindrical
Material:  Aluminium  or  Copper

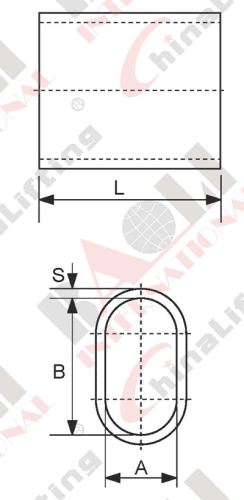

ITEM NO

SIZE

A

B

S

L

Weight



mm

mm

mm

mm

g

17001

1

1.2

2.4

0.65

5

0.094

17002

1.5

1.7

3.4

0.75

6

0.211

17003

2

2.2

4.4

0.85

7

0.375

17004

2.5

2.7

5.4

1.05

9

0.499

17005

3

3.3

6.6

1.25

11

0.843

17006

3.5

3.8

7.6

1.5

13

1.32

17007

4

4.4

8.8

1.7

14

1.81

17008

4.5

4.9

9.8

1.9

16

2.61

17009

5

5.5

11.0

2.1

18

3.57

17010

6

6.6

13.2

2.5

21

5.86

17011

6.5

7.2

14.4

2.7

23

7.55

17012

7

7.8

15.6

2.9

25

9.50

17013

8

8.8

17.6

3.3

28

13.7

17014

9

9.9

19.8

3.7

32

19.8

17015

10

10.9

21.8

4.1

35

26.4

17016

11

12.1

24.2

4.5

39

35.8

17017

12

13.2

26.4

4.9

42

45.8

17018

13

14.2

28.4

5.4

46

59.7

17019

14

15.3

30.6

5.8

49

73.5

17020

16

17.5

35.0

6.7

56

111

17021

18

19.6

39.2

7.6

63

156

17022

20

21.7

43.4

8.4

70

217

17023

22

24.3

48.6

9.2

77

292

17024

24

26.4

52.8

10.0

84

376

17025

26

28.5

57.0

10.9

91

481

17026

28

31.0

62.0

11.7

98

603

17027

30

33.1

66.2

12.5

105

739

17028

32

35.2

70.4

13.4

112

897

17029

34

37.8

75.6

14.2

119

1077

17030

36

39.8

79.6

15.0

126

1275

17031

38

41.9

83.8

15.8

133

1503

17032

40

44.0

88.0

16.6

140

1734

17033

42

46.2

92.4

17.5

147

2024

17034

44

48.4

96.8

18.3

154

2314

17035

46

50.6

101.2

19.2

161

2662

17036

48

52.8

105.6

20.0

168

3010

17037

50

55.0

110.0

20.8

175

3412

17038

52

57.2

114.4

21.6

182

3813

17039

54

59.4

118.8

22.5

189

4293

17040

56

61.6

123.2

23.3

196

4772

17041

58

63.8

127.6

24.2

203

5326

17042

60

66.0

132.0

25.0

210

5880
