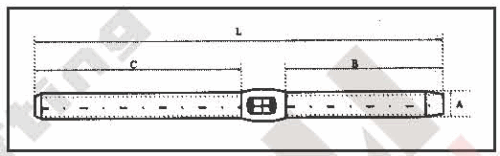

ITEM NO.

Thread

Wire-φ

L

A

B

C

mm

mm

mm

mm

mm

mm

28441S

M5

2.5

70

5.5

24

38

28442S

M6

2.5

72

6.3

24

40

28443S

M6

3

80

7.5

32

40

28444S

M6

4

95

7.5

40

44

28445S

M8

4

102

9

40

52

28446S

M8

5

120

9

57

52

28447S

M10

5

130

12.5

57

63

28448S

M10

6

136

12.5

63

63

28449S

M12

6

142

14.2

63

68

28450S

M12

7

148

14.2

70

68

28451S

M14

7

160

16

70

79

28452S

M14

8

165

16

76

79

28453S

M16

8

175

17.8

76

89

28454S

M16

9

190

17.8

89

89
