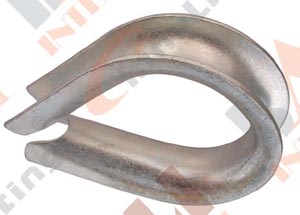

STANDARD WIRE ROPE THIMBLES 23208 23209 23210 23211 Admin Edit

23201 23202 23203 23204 23205 23206 23207 23208 23209 23210 23211


Product Description

- Recommended for Light Duty Service.
      - Hot Dip Galvanized or Zinc Plated G-411Meets the Requirements
of Federal  Specification FF-T-276b Type II.

ITEM NO

Rope DIA.

Weight    Per 100

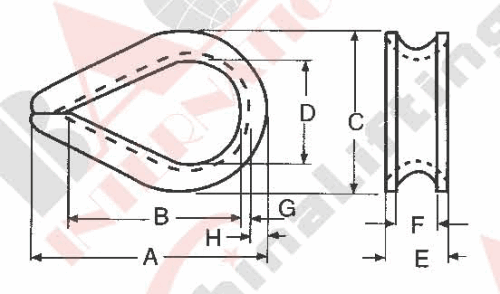

Dimensions (in.)

(in.)

(lbs.)

A

B

C

D

E

F

G

H

23201

1/8

2.50

1.94

1.31

1.06

0.69

0.25

0.16

0.05

0.13

23202

3/16

2.50

1.94

1.31

1.06

0.69

0.31

0.22

0.05

0.13

23203

1/4

3.75

1.94

1.31

1.06

0.69

0.38

0.28

0.05

0.13

23204

5/16

3.75

2.13

1.50

1.25

0.81

0.44

0.34

0.05

0.13

23205

3/8

6.25

2.38

1.63

1.47

0.94

0.53

0.41

0.06

0.16

23206

1/2

12.50

2.75

1.88

1.75

1.13

0.69

0.53

0.08

0.19

23207

5/8

25.00

3.50

2.25

2.38

1.38

0.91

0.66

0.13

0.34

23208

3/4

50.00

3.75

2.50

2.69

1.63

1.08

0.78

0.14

0.34

23209

7/8

85.00

5.00

3.50

3.19

1.88

1.27

0.94

0.16

0.44

23210

1

100.00

5.69

4.25

3.75

2.50

1.39

1.06

0.16

0.41

23211

11/8" - 11/4"

175.00

6.25

4.50

4.31

2.75

1.75

1.31

0.22

0.50
