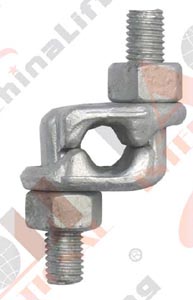

U.S. TYPE DROP FORGED WIRE ROPE CLIPS 22458 22459 22460 22461 22462 22463 22464 Admin Edit

22451 22452 22453 22454 22455 22456 22457 22458 22459 22460 22461 22462 22463 22464


Product Description

Federal Specification FF-C-450 Type III. Class I.

ITEM NO

Rope

DIMENSIONS(mm)

Size(in)

A

B

C

D

E

22451

3/16-1/4

6.35

31.75

37.3

9.65

32.5

22452

5/16

7.87

34.04

39.69

9.65

37.34

22453

3/8

9.65

40.39

47.63

11.18

45.97

22454

7/16

12.7

47.75

55.56

12.7

55.6

22455

1/2

12.7

47.75

55.56

12.7

55.6

22456

9/16

16

57.9

66.68

16

68.33

22457

5/8

16

57.9

66.68

16

68.33

22458

3/4

19.05

68.33

77.79

19.05

74.68

22459

7/8

22.35

75.44

79.38

19.05

84.07

22460

1

25.4

78.23

89.69

19.05

94.5

22461

1-1/8

28.7

87.38

99.22

22.35

106.17

22462

1-1/4

31.75

90.42

102.3

22.35

107.95

22463

1-3/8

38.1

104.9

118.27

25.4

141.22

22464

1-1/2

38.1

104.9

118.27

25.4

141.22
