Product Description

The CHINALIFTING pulling hoist is one kind of versatile and portable unit for pulling, lifting, lowering, spanning and securing loads over long distances.It comes in four sizes with capacities of 800, 1600 ,3200 kg and 5400kg.It is light, easy and safe to operate.
 Overload protecion provides high labour safety:the forward lever has built-in shearing pin,which will shear at approx.25% overload. The broken pin,however,can be replaced without removing the load.
 The CHINALIFTING pulling hoist requires minimum maintenance and is easy to service.The large opening in the top of the housing allows easy and quick cleaning of the unit with water,even hard caked mud can usually be flushed out.Then simply apply motor oil for lubrication and the CHINALIFTING pulling hoist is ready again for use.
 The CHINALIFTING pulling hoist uses a special wire rope with steel core . Only this special wire rope will ensure proper functioning.
 The standard CHINALIFTING pulling hoist includes the operating lever and  20m or 10m length of wire rope mounted on a reel.The wire rope is fitted with a safety hook at one end,and is tapered at the other end for easy access into the unit.Longer rope lengths and a large variety of accessories are available on request.


ITEM NO(ALUMINIUM BODY)

01301

01302

01303

01304

Rated Capacity (kg)

800

1600

3200

5400

Rated Forward Handpower (N)

343

441

441

745

Rated Forward Travel (N)

>=52

>=55

>=28

>=30

Rope Diameter (mm)

8.3

11

16

20

Wire Rope Safety Factor Load    Capacity

5

5

Safety Factor & Static    Load Capacity

4

4

4

5

Max. Travelling Load (kg)

1200

2400

4000

8000

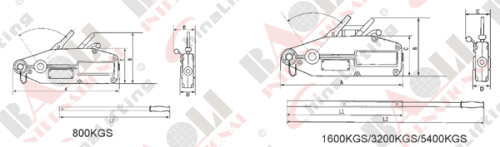

Max Overall Size(mm)

426

545

660

930

235

280

325

480

168

190

230

/

60

72

91

152

64

97

800

116

L1

/

800

680

L2

800

1200

1200

1120
