Product Description

PERMANENT MAGNETIC LIFTING

Adopted with new generation high energy magnetic material, it has the advantage of high attractive force, small in volume and light in self weight; easy operating and safe in operation. It is suitable for lifting, handling and pulling up of steel workpieces and raw material under normal temperature condition without making any mark to the workpieces.
♦ High safety factor 3.5:1.
♦ Good air gap feature,the rated plain load could still be attracted up even if the gap is smaller than 0.5mm.
♦ Easy operating long term attractive force stablity.
♦ It is suitable for transtporting the roll steel, pipe materials or the workpieces in round shape.
♦ According EN13155 STANDARD


Rated Lifting

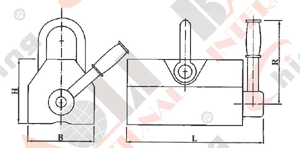

DIMENSIONS

Max Breakaway

ITEM NO

Capacity


mm


Force


kg

L

B

H

R

N

01811

100

92

62

67

126

350

01812

300

162

92

91

150

1050

01813

600

232

122

117

196

2100

01814

1000

258

176

163

284

3500

01815

2000

378

234

212

426

7000

01816

3000

458

286

264

521

10500

01817

6000

600

430

355

180

21000
