TURNBUCKLE DIN 1478 Admin Edit

24501 24502 24503 24504 24505 24506 24507


Product Description

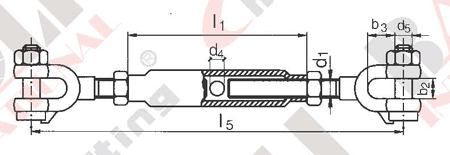

Item NoDimension(mm)

d1

l1

l5

d4

b2

b3

adjustable

nut x bolt(d5)

hexagon    bolt and nut acc. to DIN 601

24501

M 8

110

205

8

8

15

85

M 6 x 35.0

24502

M 10

125

250

8

10

21

90

M 8 x 40.0

24503

M 12

125

300

10

14

19

90

M 10 x 45.0

hexagon    bolt and nut acc. to DIN 20633

24504

M 16

170

340

10

20

24

125

M 16 x 61.5

24505

M 20

200

455

12

28

47

150

M 20 x 80.0

24506

M 24

255

550

12

33

53

180

M 24 x 100.5

24507

M 30

255

665

16

44

74

180

M 30 x 130.5
