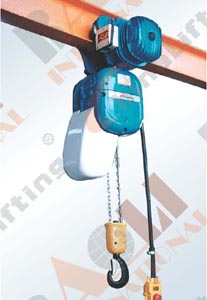

ELECTRIC CHAIN HOIST - D TYPE Admin Edit

05561 05562 05563 05564 05565


Product Description

The hoisting motion is driven by a Demag motor of the 2 or 2/8 pole squirrel cage type, the motor complies with VDE0530; insulation class F; enclosure IP54; The casing of the reducer is made of high-strength light metal, the gears are lubricated by gear oil.

ITEM NO

05561

05562

05563

05564

05565

Capacity (kg)

125

250

250

500

500

1000

1000

2000

1500

3000

Number of falls

1

2

1

2

1

2

1

2

1

2

Lift(m)17

3.4.6

2.3

3.4.6.8

2.3.4

3.4.6.8

3.4

3.4.6.8

3.4

3.4.6.8

3.4

Lifting speed

(m/min)

Normal speed

8

4

8

4

10

5

8

4

4

2

Creep speed

2

1

2

1

2.5

1.25

2

1


Power of lifting moter

(KW)

Normal speed

0.20

0.4

1.0

1.5

2.2

Creep speed

0.05

0.12

0.25

0.35


Supply voltage and frequency

3-380V 50Hz

Rating (%)

25/15

Diameter of load chain x pitch (mm)

4x12

5x15

7x21

10x28

10x28
