ELECTRIC CHAIN HOIST M TYPE 05558 05559 Admin Edit

05551 05552 05553 05554 05555 05556 05557 05558 05559


Product Description

. Its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product.
      . Offered as hook suspension or with a range of push, geared or dual speed electric trolleys .
      . Upper and lower limit switches.
      . The heavy-duty squirrel cage motor features an adjustable spring pressure.
      . All units factory tested to 125% safe working load.


1 Power supply:3-phase 380V.50HZ
      2.Push button operating voltage:48V,special voltage is available on request;
      3.Other hoisting lifts and push button cord lengths are available on request;
    4.3-ph 380/230V,50HZ,1-ph 230V.50HZ units available.

ITEM NO

05551

05552

05553

05554

05555

05556

05557

05558

05559

Rated    Capacity(kg)

125

250

160

320

250

500

1000

2000

3000

Testing Load(kg)

160

320

200

400

320

625

1250

2500

3750

Output PowerFast

0.25

0.25

0.4

0.4

0.4

0.4

1.6

1.6

1.6

Slow

0.06

0.06

0.1

0.1

0.1

0.1

0.4

0.4

0.4

Rating FactorFast

40

40

40

40

40

40

40

40

40

Slow

20

20

20

20

20

20

20

20

20

Lifting SpeedFast

8

4

12

6

8

4

8

4

2.55

Slow

2

1

3

1.5

2

1

2

1

0.64

Load Chaindia.x Pmm

5X15

5X15

5X15

5X15

5X15

5X15

8X24

8X24

8X24

Num. of falls

1

2

1

2

1

2

1

2

3

Power    Source

4Core(1.5mm2)

4Core(1.5mm2)

4Core(1.5mm2)

4Core(1.5mm2)

4Core(1.5mm2)

4Core(1.5mm2)

4Core(1.5mm2)

4Core(1.5mm2)

4Core(1.5mm2)

Push    Button

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

5Core(1mm2) Long2.5m

Min. Distancebetween Hooks

400

400

400

650

984

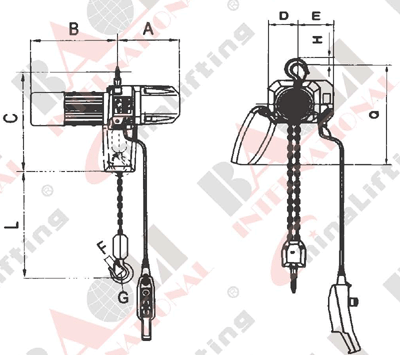

DimensionA

236

236

236

430

334

B

279

309

309

373

520

C

400

400

400

430

880

D

102.5

102.5

102.5

130

155

E

122.5

122.5

122.5

148

262

F

25

25

25

40

50

G

36

36

36

50

62

H

18

18

18

30

58

L

3000

3000

3000

3000

3000

Q

440

440

440

450

800
