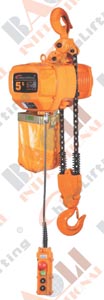

ELECTRIC CHAIN HOIST K1 TYPE 05578 05579 Admin Edit

05571 05572 05573 05574 05575 05576 05577 05578 05579


Product Description

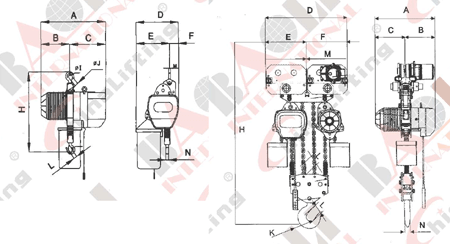

SIZE SPECIFICATION

Item No.load

Dimension    (mm)


(t)

H

A

B

C

D

E

F

I

J

K

L

M

N

05571

0.3

545

340

170

170

240

115

125

32

30

32

30

20

20

05572

0.5

580

455

230

226

310

155

155

31

29

31

29

20

20

05573

1 .5

700

630

315

315

448

278

170

52

45

52

4

35

35

05574

2

880

630

315

315

448

27 8

170

52

45

52

45

35

35

05575

2.5

960

630

315

315

448

340

170

52

45

52

45

35

35

05576

3

700

630

315

315

448

278

108

52

45

52

45

35

30

05577

5

1030

630

315

315

448

356

92

63

52

63

52

45

45

05578

10

1200

620

310

310

890

380

380

56

/

90

80

80

55

05579

10

1260

630

315

315

900

450

460

70

/

86

80

84

55

TECHNICAL PARAMETERS
Item No.lifting
          weight
lifting
          height
lifting
          speed
travellingrotary speedlilting motorfrequencypowerrotary speedrunning    motorfrequencyI-Beam
speedpowerphasevoltagephasevoltagewidth ranger
(t)(m)(m/min)(m/min)(Kw)(r/min)
(V)(Hz/V)(Kw)(r/min)
(V)(Hz/V)(mm)
05571

0.3

3/9

8.0

20

0.75

1440

3

380/220

50/60

0.4

1440

3

380/220

50/60

75-125

05572

0.5

3/9

7.8

20

1.1

1440

3

380/220

50/60

0.4

1440

3

380/220

50/60

75-125

05573

1.5

3/9

10.2

20

3

1440

3

380/220

50/ 60

0.4

1440

3

380/220

50/60

100-150

05574

2

3/10

6.8

20

3

1440

3

380 220

50/ 60

0.4

1440

3

380/220

50/60

128-175

05575

2.5

3/11

5.6

20

3

1440

3

380/220

50/ 60

0.4

1440

3

380/220

50/60

128-175

05576

3

3/12

5.8

20

3

1440

3

380/220

50/ 60

0.75

1440

3

380/220

50/60

100-150

05577

5

3/13

2.8

20

3

1440

3

380/220

50/ 60

0.75

1440

3

380/220

50/60

128-175

05578

10

3/9

2.8

14

3.0x2

1440

3

380/220

50/60

0.75x2

1440

3

380/220

50/60

150-300

05579

10

3/9

2.8

14

3.0x2

1440

3

380/220

60/60

0.75 x 2

1440

3

380/220

50/60

150-300
