HS-A TYPE(Economy Type) 01017 01018 01019 Admin Edit

01011 01012 01013 01014 01015 01016 01017 01018 01019


Product Description

ITEM NO

01011

01012

01013

01014

01015

01016

01017

01018

01019

Capacityt

0.5

1

1.5

2

2

3

5

10

20

Standard    liftm

2.5

2.5

2.5

3

2.5

3

3

3

3

Running    test loadN

0.75

1.5

2.25

3

3

4.5

7.5

12.5

25

Headroom(drawn close-up)Hminmm

255

306

368

396

444

486

616

700

1000

Effort required to lift    max.loadN

221

304

343

294

314

343

383

392

392

No.of colums of load chain

1

1

1

1

2

2

2

4

8

Load chain dia.Dimensions(mm)mm

6x18

6x18

8x24

10x30

6x18

8x24

10x30

10x30

10x30

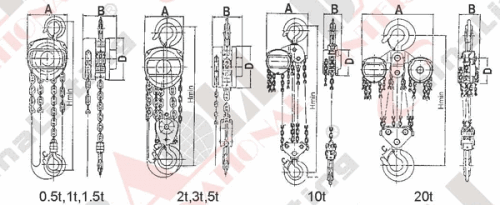

A

125

147

183

215

147

183

215

360.5

585

B

111

126

141

163

126

141

163

163

191

C

24

28

34

38

34

38

48

64

82

D

134

154

192

224

154

192

224

224

224
