Product Description

HS-S TYPE 01037 01038 01039 01040 01041 01042 01043


, Adopting the double-pawl braking ensures the chain block for                    safe and reliable operation.
                  The hoisting sprocket made of alloy steel with precision machine                    has been got well heat-treatment. It matches with chain very well
                  so that the wear is decreased and the operating life increased.
                  The rolling bearings with international general standard are fitted                   at  the ends of the hoisting sprocket, with high transmission
                  efficiency, small pulling force and easy maintenance.
































ItemNo.


1030

1031

1032

1033

1034

1035

1036

1037

1038

1039

1040

1041

1042

1043

Capacity(kg)


250

500

1000

1500

2000

3000

3000

5000

7500

10000

15000

20000

30000

50000

Standardlift(m)


3

3

3

3

3

3

3

3

3

3

3

3

3

3

No.ofloadchainfalls


1

1

1

1

1

1

2

2

3

4

6

8

12

20

LoadChainDia.

mm

4x12

5x15

6x18

7x21

8x24

10x30

7x21

10x30

10x30

10x30

10x30

10x30

10x30

10x30

EffortrequiredtoliftMax.load(N)


235

249

284

380

343

372

343

372

368

382

378

382

398

475x2

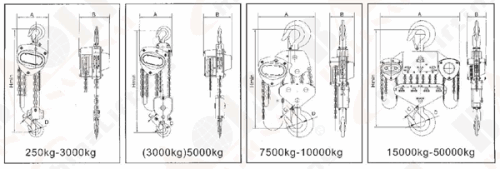

Dimension

(mm)

A(mm)

120

146

161

182

202

255

230

250

430

460

718

840

870

746

B(mm)

114

138

154

176

177

205

176

189

189

189

189

189

455

660

C(mm)

21

23

27

33

35

39

39

45

47

59

70

80

85

110

D(mm)

31

35

40

45

50

55

55

65

67

85

95

106

110

128

Hmin(mm)

280

350

383

442

485

554

565

688

760

780

950

970

1400

2480



FEATURESOFHS-STYPECHAINBLOCK
