TROLLEY CLAMP A TYPE Admin Edit
| Easy fitting to overhead beams for the attachment and transport of loads. Central threaded spindle provides quick adjustment to the required beam width. Locking lever secures the adjustment. Threaded spindle and clevis are zinc plated for added corrosion protection. | ||||||
| ITEM NO. | 01791 | 01792 | 01793 | 01794 | 01795 | |
| Capacity | 0.5t | 1t | 2t | 3t | 5t | |

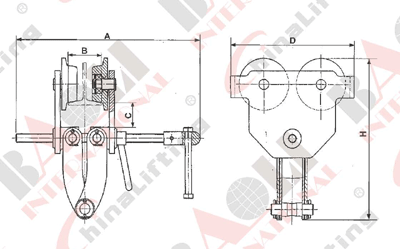

| Dimensions(mm) | A | 340 | 340 | 340 | 345 | 465 |
| Beam with(B) | 63-203 | 63-203 | 76-203 | 76-203 | 100-305 | |
| C | 25.4 | 25.4 | 25.4 | 26 | 31 | |
| D | 175 | 175 | 280 | 345 | 395 | |
| H | 263-324 | 263-324 | 339-387 | 374-438 | 450-528 | |
