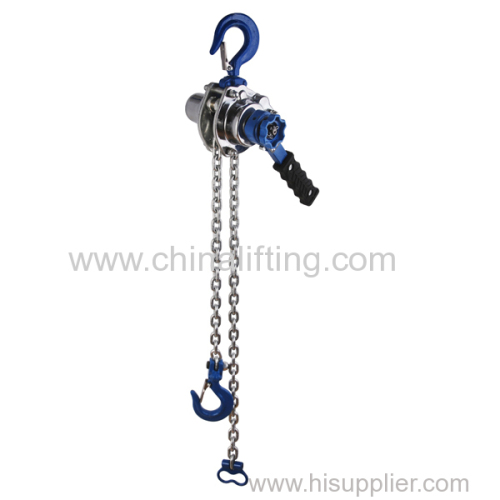

HSH-BJ TYPE Admin Edit
| .When operating, the pulling force on lever smaller and operation easy. .When lifting, whether it is heavy load or light load, the body will not be shaken to ensure the load up or down stably. .The gear box accept reinforcement fix position structure to ensure the gear system working normally after dashed. .The main parts including chain, gear and hook are made of superior alloy-steel, manufactured by special technique with high strength , safety and durability. .The knob handle making operation easier. .Generous and attractive appearance. | ||||
| ITEM NO | 01209 | 01210 | ||
| Capacity | t | 0.25 | 0.5 | |
| Lift | m | 1 | 1.5 | |
| Test Load | kN | 3.06 | 6.12 | |
| Headroom(hook to hook) Hmin mm | 215 | 255 | ||
| Pulling force on lever to lift full load N | 125 | 180 | ||
| No. of load chain fall lines | 1 | 1 | ||
| Load chain ( dia. x pitch ) mm | 4x12 | 5x15 | ||

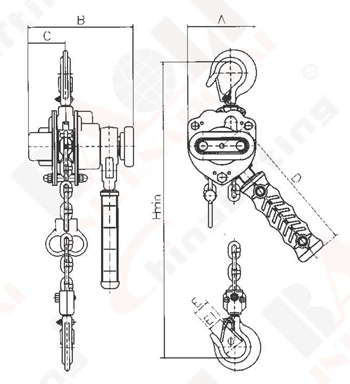

| Dimensions (mm) | A | 75 | 90 | |
B | 116 | 135 | ||
C | 41 | 51.5 | ||
D | 157 | 180 | ||
E | 18 | 24 | ||
E1 | 15.5 | 21 | ||
25 | 32 | |||
| Net weight | kg | 2 | 3.5 | |
