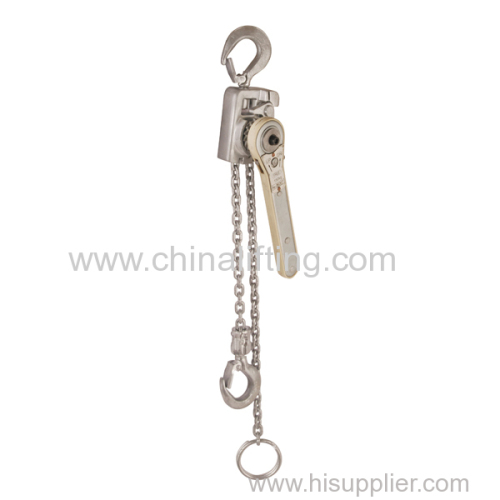

HSH-HA TYPE Admin Edit
| .Light Weight: 100kg only 0.8kg | |||
ITEM NO | 01287 | 01288 | |
Capacity | kg | 100 | 150 |
Lift | m | 1.0 | 1.0 |
Test load | kg | 150 | 225 |
Pull on lever to lift full load | N | 156.8 | 156.8 |
No. of load chain falls | 1 | 1 | |
Diameter of Load chain | mm | 3.1x9.3 | 3.1x9.3 |

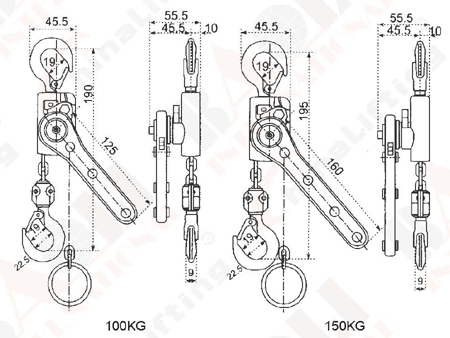

Min.distance between hooks:H | mm | 190 | 195 |
Length of lever handle:D | mm | 125 | 160 |
