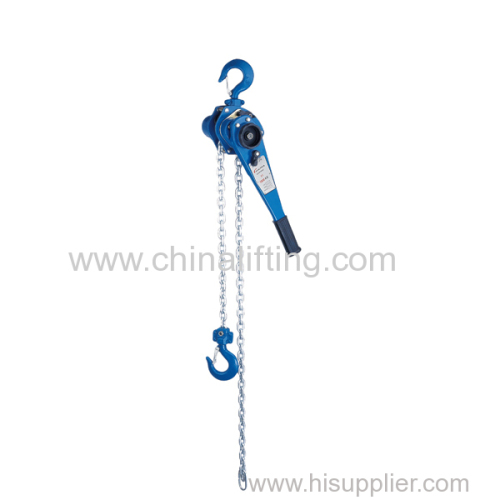

HSH-D TYPE Admin Edit
| Item No | 01261 | 01262 | 01263 | 01264 | 01265 | 01266 | 01267 | |
| Capacity | T | 0.5 | 0.75 | 1 | 1.5 | 3 | 6 | 9 |
| Standard lift | M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | KN | 0.75 | 1.125 | 1.5 | 2.25 | 4.5 | 9 | 13.5 |
| Effort required to lift max.load | 328 | 147 | 196 | 244 | 372 | 382 | 382 | |
| No. of colums of load chain falls | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Load chain dia. mm | Φ5×15 | Φ6×18 | Φ6×18 | Φ7.1×21 | Φ9×27 | Φ9×27 | Φ10×30 | |

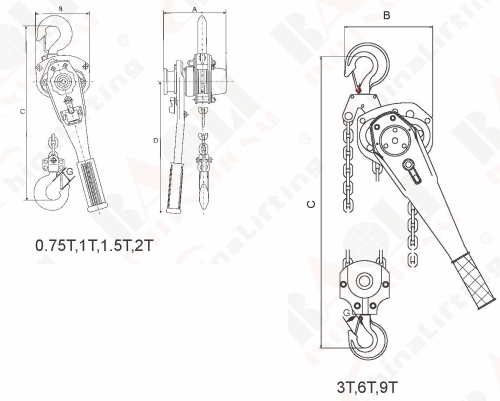

| Dimensions (mm) | A | 110 | 148 | 148 | 163 | 191 | 191 | 191 |
| B | 82 | 128 | 128 | 148 | 181 | 244 | 366 | |
| C | 260 | 295 | 310 | 335 | 405 | 550 | 645 | |
| D | 261 | 256 | 256 | 368 | 368 | 368 | 368 | |
| G | 23 | 26 | 26 | 30 | 34 | 47 | 64 | |
|
